Drop a cold star cluster. Watch it find its feet.

I built AMBER so agent models could grow without dying in a pure-Python loop — the whole population lives in a Polars table (paper). The question is always: does that still feel like modelling when the rules get nasty?

Gravity is a good nasty. Every star pulls on every other star, all the time. There is no neat neighbourhood graph to hide behind. If your framework thinks in objects, you pay for that N² loop in the interpreter. If it thinks in columns, you hand the same loop to NumPy and go make coffee. So I built the same cold-collapse cluster three times — AMBER, Mesa, AgentPy — same physics, same seed, and let them race.

The collapse, in plain language

Sprinkle a few hundred stars in a ball and give them almost no speed. With nothing to hold them up, they fall in. They overshoot, slosh through the middle, fling a few friends into a faint halo, and eventually settle into a compact core that is roughly in balance — what physicists call virial equilibrium. The messy middle act, where energies get reshuffled by a thrashing potential, is Lynden-Bell’s violent relaxation.

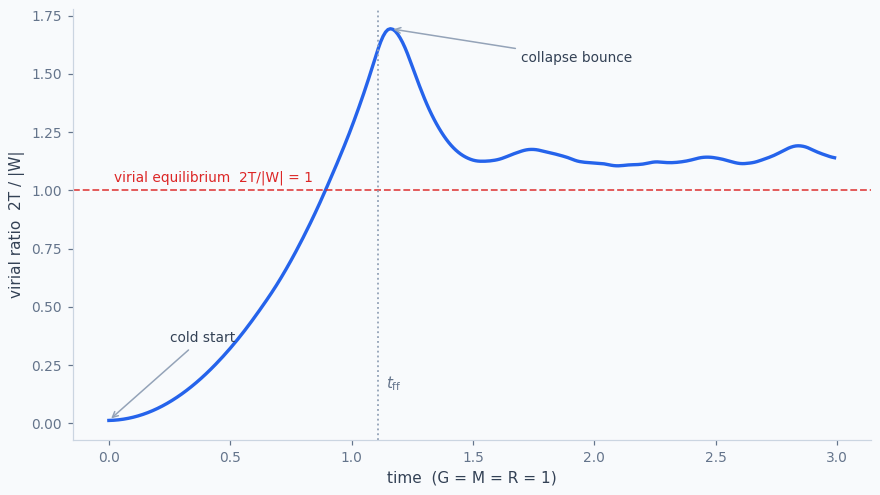

One number tells the story: the virial ratio Q = 2T/|W|. Cold start ≈ 0. Bounce spikes above 1. Settled cluster hangs around 1. Ours opens at 0.013, hits ~1.7 at the bounce, then rings down:

Same physics, three dialects

Fair race: identical initial conditions, identical leapfrog, identical softened gravity. If the answers disagree, that is a framework bug, not a universe bug. Units are the usual toy set — G = M = R = 1.

import numpy as np

N, DT, EPS2, SEED = 300, 0.01, 0.05**2, 42
M = 1.0 / N  # per-star mass

def initial_conditions(seed=SEED):
    """Uniform sphere, tiny isotropic velocities (cold start)."""
    rng = np.random.default_rng(seed)
    r = rng.random(N) ** (1 / 3)
    costh = rng.uniform(-1, 1, N)
    phi = rng.uniform(0, 2 * np.pi, N)
    sinth = np.sqrt(1 - costh**2)
    x, y, z = r * sinth * np.cos(phi), r * sinth * np.sin(phi), r * costh
    v = rng.normal(0, 0.05, (3, N))
    return x, y, z, v[0], v[1], v[2]

def accelerations(x, y, z):
    """Softened all-pairs gravity as one (N, N) broadcast."""
    dx = x[None, :] - x[:, None]
    dy = y[None, :] - y[:, None]
    dz = z[None, :] - z[:, None]
    inv_r3 = (dx**2 + dy**2 + dz**2 + EPS2) ** -1.5
    np.fill_diagonal(inv_r3, 0.0)
    return (M * np.sum(dx * inv_r3, axis=1),
            M * np.sum(dy * inv_r3, axis=1),
            M * np.sum(dz * inv_r3, axis=1))

def virial_ratio(x, y, z, vx, vy, vz):
    T = 0.5 * M * np.sum(vx**2 + vy**2 + vz**2)
    dx = x[None, :] - x[:, None]
    dy = y[None, :] - y[:, None]
    dz = z[None, :] - z[:, None]
    inv_r = (dx**2 + dy**2 + dz**2 + EPS2) ** -0.5
    np.fill_diagonal(inv_r, 0.0)
    W = -0.5 * M * M * np.sum(inv_r)
    return float(2 * T / abs(W))

How it looks in AMBER

With current AMBER (pip install -U ambr, this post is on 0.4.2), the stars are rows in a table. Each step I pull the columns I need, do the leapfrog in NumPy, and write them back. Two verbs do almost all the work: agents.numpy(...) and agents.set(...).

import ambr as am
print(am.__version__)   # 0.4.2+
# am.print_status()     # optional: GPU? which speed lane?

class AmberStarCluster(am.Model):
    # declarative per-step metric -> results.model (RunResults)
    model_reporters = {
        'virial': lambda m: virial_ratio(
            *m.agents.numpy('x', 'y', 'z', 'vx', 'vy', 'vz')),
    }

    def setup(self):
        x, y, z, vx, vy, vz = initial_conditions()
        self.add_agents(N, x=x, y=y, z=z, vx=vx, vy=vy, vz=vz)

    def step(self):
        # bulk read (prefer numpy() + set() for multi-column array math)
        x, y, z, vx, vy, vz = self.agents.numpy('x', 'y', 'z',
                                                'vx', 'vy', 'vz')
        # leapfrog: kick - drift - kick
        ax, ay, az = accelerations(x, y, z)
        vx = vx + 0.5 * DT * ax; vy = vy + 0.5 * DT * ay; vz = vz + 0.5 * DT * az
        x = x + DT * vx;         y = y + DT * vy;         z = z + DT * vz
        ax, ay, az = accelerations(x, y, z)
        vx = vx + 0.5 * DT * ax; vy = vy + 0.5 * DT * ay; vz = vz + 0.5 * DT * az
        # bulk write
        self.agents.set(x=x, y=y, z=z, vx=vx, vy=vy, vz=vz)

# show_progress is off by default in 0.4+
model = AmberStarCluster({'steps': 300, 'seed': SEED})
results = model.run()
print(results.model['virial'][-1])  # ~1.14; also results['model']

Notes on the 0.4 API: add_agents(n, **columns) bulk-creates the population (array kwargs length n, scalars broadcast). model_reporters evaluates once per step into a RunResults object — access metrics as results.model or results['model']. Columnar filters use agents.where(...) / agents.at[ids] (legacy agents.select still works but is deprecated toward 1.0). Single-column view assignment like self.agents.x = self.agents.x + … is also valid; for multi-column leapfrog, numpy() + set() stays the cleanest bulk path. There is no per-agent loop anywhere.

The same model in Mesa

Mesa 3.x is the classic object-per-agent design: each star is an object, and the model tells the population to run methods. One subtlety — with in-place per-agent updates, you must split the step into phases (compute all forces first, then integrate) or agents late in the iteration order would feel forces from positions that were already moved:

import mesa

class MesaStar(mesa.Agent):
    def __init__(self, model, x, y, z, vx, vy, vz):
        super().__init__(model)
        self.x, self.y, self.z = x, y, z
        self.vx, self.vy, self.vz = vx, vy, vz
        self.ax = self.ay = self.az = 0.0

    def compute_force(self):
        ax = ay = az = 0.0
        for other in self.model.agents:      # O(N) pure-Python loop,
            if other is self:                # inside an O(N) dispatch
                continue                     # -> O(N^2) per phase
            dx = other.x - self.x
            dy = other.y - self.y
            dz = other.z - self.z
            inv_r3 = (dx*dx + dy*dy + dz*dz + EPS2) ** -1.5
            ax += M * dx * inv_r3
            ay += M * dy * inv_r3
            az += M * dz * inv_r3
        self.ax, self.ay, self.az = ax, ay, az

    def kick(self):
        self.vx += 0.5 * DT * self.ax
        self.vy += 0.5 * DT * self.ay
        self.vz += 0.5 * DT * self.az

    def drift(self):
        self.x += DT * self.vx
        self.y += DT * self.vy
        self.z += DT * self.vz

class MesaStarCluster(mesa.Model):
    def __init__(self, seed=SEED):
        super().__init__(seed=seed)
        x, y, z, vx, vy, vz = initial_conditions()
        for i in range(N):
            MesaStar(self, x[i], y[i], z[i], vx[i], vy[i], vz[i])

    def step(self):
        self.agents.do('compute_force')  # forces at t
        self.agents.do('kick')
        self.agents.do('drift')
        self.agents.do('compute_force')  # forces at t + dt
        self.agents.do('kick')

…and in AgentPy

AgentPy reads almost identically to Mesa here; its AgentList broadcasts method calls (self.stars.kick()), which is pleasant, but each call still dispatches into a Python loop over objects:

import agentpy as ap

class APStar(ap.Agent):
    def setup(self, x=0., y=0., z=0., vx=0., vy=0., vz=0.):
        self.x, self.y, self.z = x, y, z
        self.vx, self.vy, self.vz = vx, vy, vz
        self.ax = self.ay = self.az = 0.0

    # compute_force / kick / drift identical to the Mesa agent
    ...

class APStarCluster(ap.Model):
    def setup(self):
        x, y, z, vx, vy, vz = initial_conditions()
        self.stars = ap.AgentList(self, N, APStar)
        for i, star in enumerate(self.stars):
            star.setup(x[i], y[i], z[i], vx[i], vy[i], vz[i])

    def step(self):
        self.stars.compute_force()
        self.stars.kick()
        self.stars.drift()
        self.stars.compute_force()
        self.stars.kick()
        self.record('virial', self._virial())

Do they even agree?

They should — same seed, same helpers — and they do. Virial trajectories match to about 3.6 × 10⁻¹⁵, which is float dust, not physics. Only after that check is it fair to time anything (same habit as AMBER’s own benchmarks).

Who finishes first

Three hundred stars, three hundred steps — the whole collapse above — one process, Apple Silicon:

Framework	Architecture	Wall time	vs AMBER
AMBER (vectorized)	Columnar (Polars) + NumPy broadcast	3.4 s	1×
AgentPy 0.1.5	Object per agent	69 s	20×
Mesa 3.3	Object per agent	75 s	22×

Watch the race

Numbers in a table are easy to shrug off, so here are the three actual runs replayed side by side. Each panel plays back the x–y positions recorded from that framework's own run (every 3rd step, diagnostics off). In Race mode, each panel advances at its framework's measured wall-clock speed — AMBER finishes its 300 steps in 1.2 s of compute while Mesa and AgentPy are still in free fall. In Synced mode the panels step together, so you can verify the trajectories are indistinguishable.

Two honest caveats. First, all-pairs gravity is O(N²) everywhere — AMBER doesn't change the asymptotics, it changes the constant: the pair interactions run inside NumPy's C kernels instead of the Python interpreter. At N = 3000 the AMBER run takes ~5.7 minutes, while the object-per-agent versions extrapolate to roughly two hours (100× more pairs — we didn't wait). Second, this workload is a best case for vectorization: fully global, fully regular. Models with irregular, hard-to-vectorize behaviours are where Mesa and AgentPy's object model earns its keep — which is why AMBER keeps a buffered object-oriented path (agent_class=, per-agent iteration) so you can mix both styles in one model.

What I took from it

When the update is really “do the same thing to everyone,” columns win. Gravity is an extreme case; epidemiology and diffusion are friendlier ones. Keep the physics helpers boring and shared, check that the answers match, then compare clocks. AMBER’s extras — speed lanes, Numba, GPU ensembles — can wait for posts that need them.

The quieter sequel is already up: heavy stars sink, light stars leave. Same kitchen, slower heat.

To race it yourself: pip install -U ambr mesa agentpy, paste the helpers, pick a dialect. Questions or PhD-position leads: email me.
